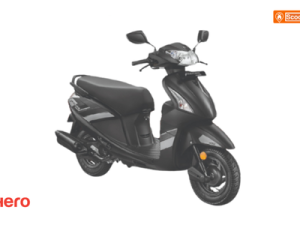

Hero Pleasure Stealth

Description

Engine

Type: Air-cooled, 4-stroke Single Cylinder OHC

Bore & Stroke: 50.0 mm x 52.0 mm

Displacement: 102 cc

Compression Ratio: 99:1

Max Power: 5.15 kW (6.9 BHP) @ 7000 rpm

Max Torque: 8.1 Nm @ 5000 rpm

Max Speed: 77 km/h

Clutch: Dry, Automatic Centrifugal Clutch

Ignition: CDI

Starting System: Self-start

Suspension

Front: Bottom Link with Spring-loaded Hydraulic Damper

Rear: Unit Swing with Spring-loaded Hydraulic Damper

Dimensions

L X W X H: 1750 mm x 705 mm x 1115 mm

Wheelbase: 1240 mm

Ground Clearance: 125 mm

Kerb Weight: 101 Kg

Fuel Tank Capacity: 5 Litres (Min)

Head Lamp: 12V-35W/ 35 W — Halogen Bulb(Multi-Reflector Type)

Position Lamp: 12V-5W X 2 Nos

Wheels & Tyres

Tyre Size Front: 90/100x 10 – 53 J

Tyre Size Rear: 90/100x 10-53 J

Brakes

Front Brake: Internal Expanding Shoe Type (130 mm)

Rear Brake: Internal Expanding Shoe Type (130 mm, Integrated Braking System (IBS)

Electricals

Head Lamp: 12V-35W/ 35 W — Halogen Bulb(Multi-Reflector Type)

Position Lamp: 12V-5W X 2 Nos
