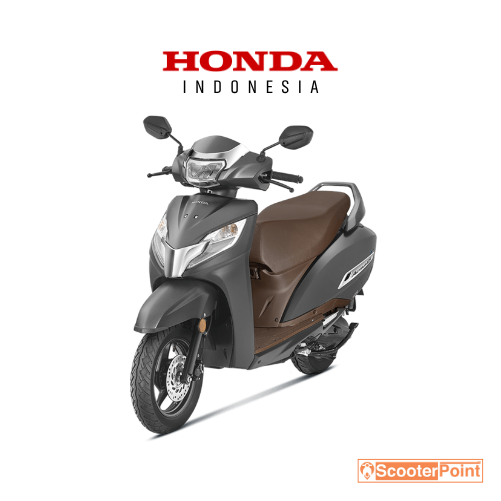

Honda Activa 125 Fi 7G

Description

BODY DIMENSIONS

Length: 1,850 mm
Width: 707 mm
Height: 1,160 mm
Wheelbase: 1,260 mm
Ground Clearance: 162 mm
Seat Length: 712 mm
Seat Height: 765 mm
Kerb Weight: 107 kg
Fuel Tank Capacity: 5.3 L

ENGINE

Type: 4-Stroke, SI Engine
Displacement: 123.92 cc
Max Engine Output: 6.20 kW @ 6,500 rpm
Max Torque: 10.5 Nm @ 5,000 rpm
Bore x Stroke: 50.0 x 63.1 mm
Compression Ratio: 10.0:1
Fuel System: PGM-FI
Starting Method: Self / Kick
Clutch Type: Automatic Centrifugal Clutch (Dry Type)

TYRES & BRAKES

Front Tyre: 90/90-12 54J
Rear Tyre: 90/100-10 53J
Front Brake: Disc, 190 mm
Rear Brake: Drum, 130 mm

FRAME & SUSPENSION

Frame Type: Underbone
Front Suspension: Telescopic
Rear Suspension: 3-Step Adjustable Spring-Loaded Hydraulic

ELECTRICALS

Battery: 12 V, 5.0 Ah
Headlamp: LED DC
