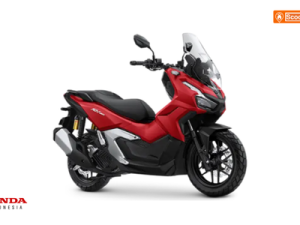

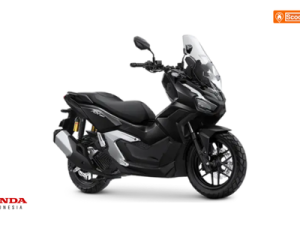

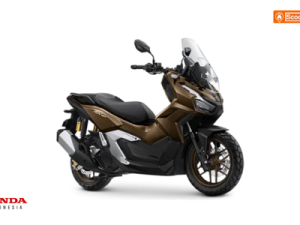

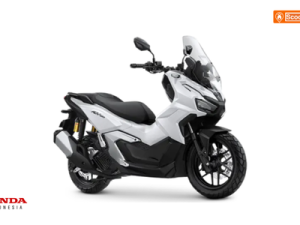

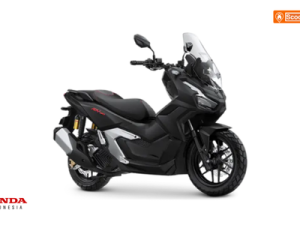

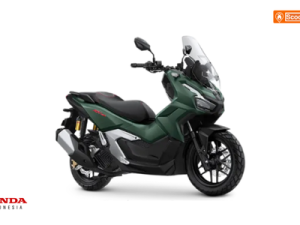

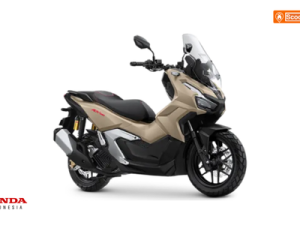

Honda ADV 160 ABS

Description

ENGINE

Engine Type: 4-Stroke, 4-Valve, eSP+

Cooling Type: Liquid-Cooled

Fuel Supply System: PGM-FI (Programmed Fuel Injection)

Displacement: 156.9 cc

Bore x Stroke: 60 x 55.5 mm

Compression Ratio: 12:1

Maximum Power: 11.8 kW (16 PS) / 8,500 rpm

Maximum Torque: 14.7 Nm (1.5 kgf·m) / 6,500 rpm

Transmission Type: Automatic, V-Matic

Starter Type: Electric

Clutch Type: Automatic, Centrifugal, Dry Type

Lubricant Type: Wet

Lubricant Capacity: 0.75 L (Periodic Change)

FRAME & SUSPENSION

Frame Type: Double Cradle

Front Suspension: Telescopic

Rear Suspension: Dual Rear Suspension with Tube

TYRES

Front Tyre: 110/80 – 14 M/C Tubeless

Rear Tyre: 130/70 – 13 M/C Tubeless

BRAKES

Front Brake: Wavy Disc

Rear Brake: Wavy Disc

Braking System: Triple Pots Hydraulic Combi Brake System (CBS) / Anti-Lock Braking System (ABS & Honda RoadSync)

DIMENSIONS & WEIGHT

Length x Width x Height: 1,950 x 763 x 1,196 mm

Wheelbase: 1,324 mm

Ground Clearance: 165 mm

Seat Height: 780 mm

Curb Weight: 133 kg (CBS & ABS) / 134 kg (Honda RoadSync)

Fuel Tank Capacity: 8.1 L

ELECTRICAL

Ignition System: Fully Transistorized

Battery Type: 12V-5Ah, MF

Spark Plug Type: NGK LMAR8L-9

Power Charger: 5V, 3A
