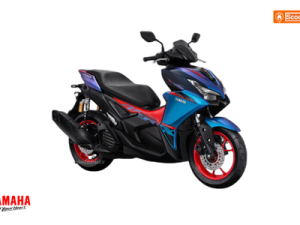

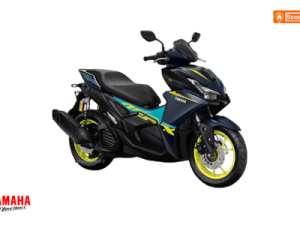

Yamaha Aerox Alpha

Description

Engine

Engine Type: 4-Stroke, Liquid-Cooled, SOHC, 4-Valve, VVA

Number of Cylinders: Single Cylinder

Bore x Stroke: 58 x 58.7 mm

Engine Capacity: 155.09cc

Maximum Power: 11.3 kW (15.4 PS) / 8000 rpm

Maximum Torque: 14.2 Nm / 8000 rpm

Starting System: Electric Starter

Lubrication System: Wet Lubrication

Engine Oil Capacity: 1.00 L (TURBO & TURBO Ultimate), 0.90 L (Standard & CyberCity)

Fuel System: Fuel Injection

Clutch Type: Centrifugal Clutch, Dry

Transmission Type: Automatic V-Belt / YECVT (TURBO & TURBO Ultimate)

Compression Ratio: 11.6:1

Frame

Frame Type: Underbone

Front Suspension: Telescopic with 30mm Inner Tubes

Rear Suspension: Unit Swing

Tire Type: Tubeless

Front Tire: 110/80-14/C 53P

Rear Tire: 140/7-14/C 62P

Front Brake: Disc Brake

Rear Brake: Disc Brake

Dimensions

Fuel Tank Capacity: 5.5 L

LxWxH: 1980mm x 710mm x 1170mm

Wheelbase: 1350mm

Ground Clearance: 145mm

Seat Height: 790mm

Kick Weight: 130 kg (TURBO & TURBO Ultimate), 127 kg (CyberCity), 124 kg (Standard)

Electricity

Ignition System: TCI

Battery Type: YTZ77V (TURBO and TURBO Ultimate), YTZ76V (Standard & CyberCity)

Spark Plug Type: NGK/CPR8EA-9
